Chain drives 300N/2

Drives 24 V

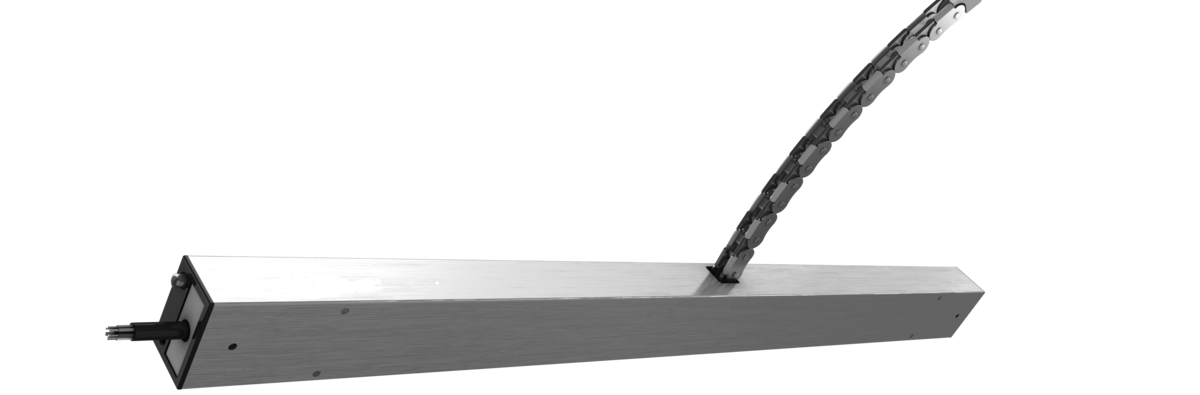

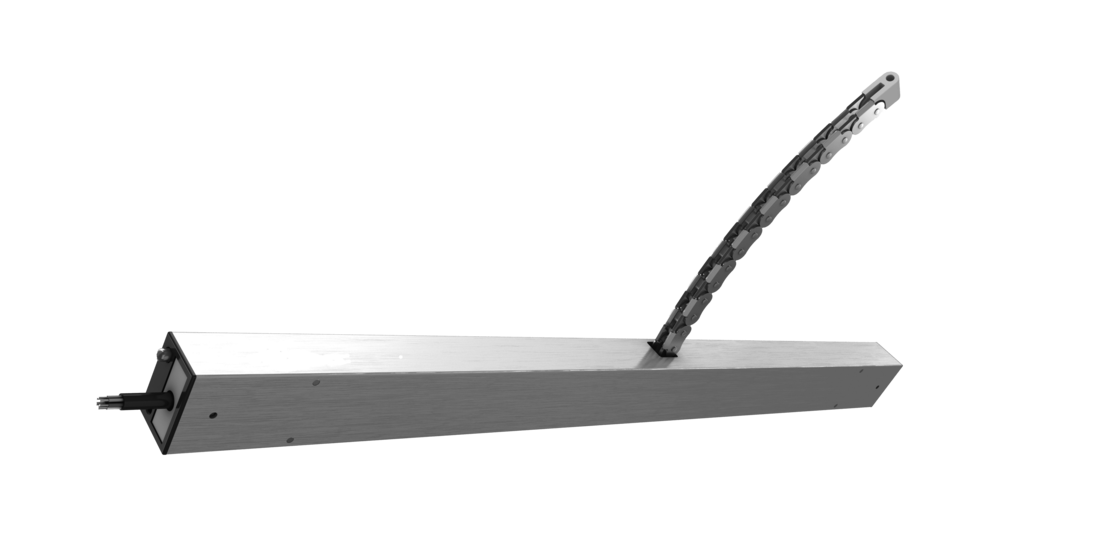

SKA 30/2
24 V chain drive for natural ventilation and smoke and heat exhaust (SHE)

Universal chain drive for window and facade elements
Little space required on the window due to slim housing and low installation depth
Simple installation due to click fastening with slim brackets both on the frame and on the sash
Connection option on both sides with plug-in connector for easy connection of several drives
Simple basic configuration directly on the drive opening width 21 to 800 mm
Adjustable CLOSED signal, potential-free contact integrated
Tight-closing relief, adjustable
